MiSTer SNAC Adapter - PlayStation (PSX/PS1/PS2)

The MiSTer SNAC Adapter for PlayStation is the essential add-on for serious MiSTer FPGA users looking to achieve the ultimate authentic gaming experience on the PSX core. SNAC (Serial Native Accessory Converter) provides a direct interface with the MiSTer core, enabling the use of original PlayStation controllers and accessories with zero input latency.

Key Features:

• Zero Input Lag: Experience precise, uncompromised gameplay using your original accessories.
• Native Controller Support: Connect original PlayStation (PSX, PS1, PS2) controllers, including DualShock controllers for rumble/vibration feedback.

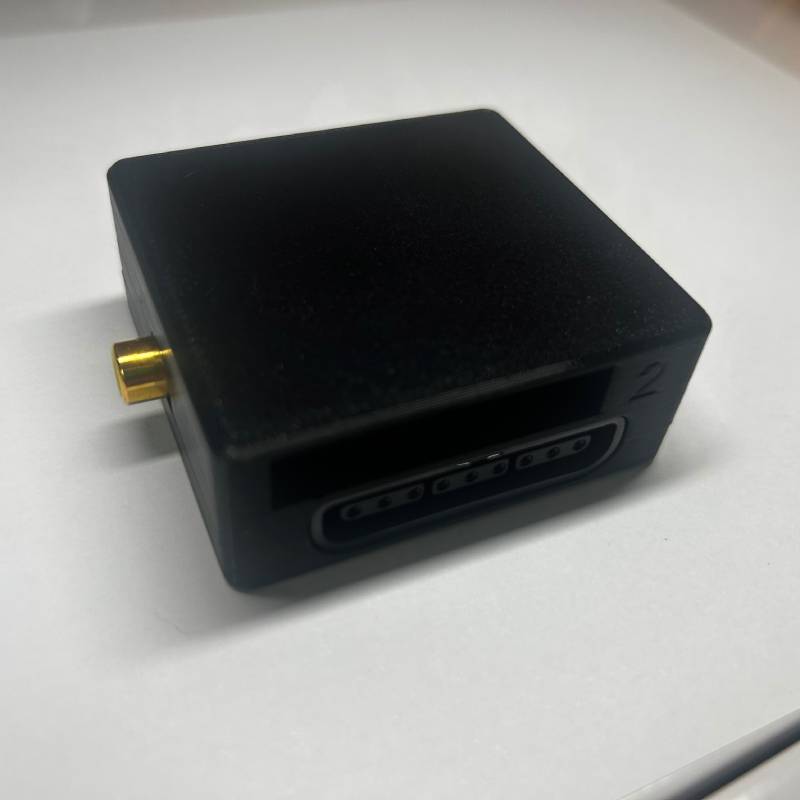

• 2-Player Support: Features two dedicated ports for controllers/accessories.

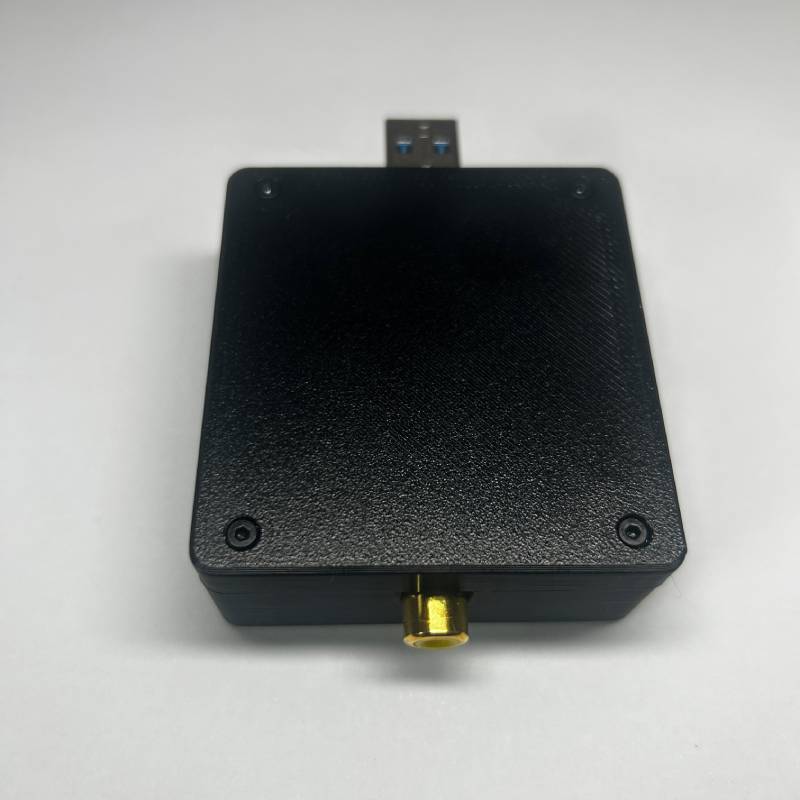

• Light Gun Compatibility: Includes a composite port (RCA jack) for connecting accessories like the Sony GunCon (G-Con 45) or Hyper Blaster (requires a CRT monitor for light gun function).

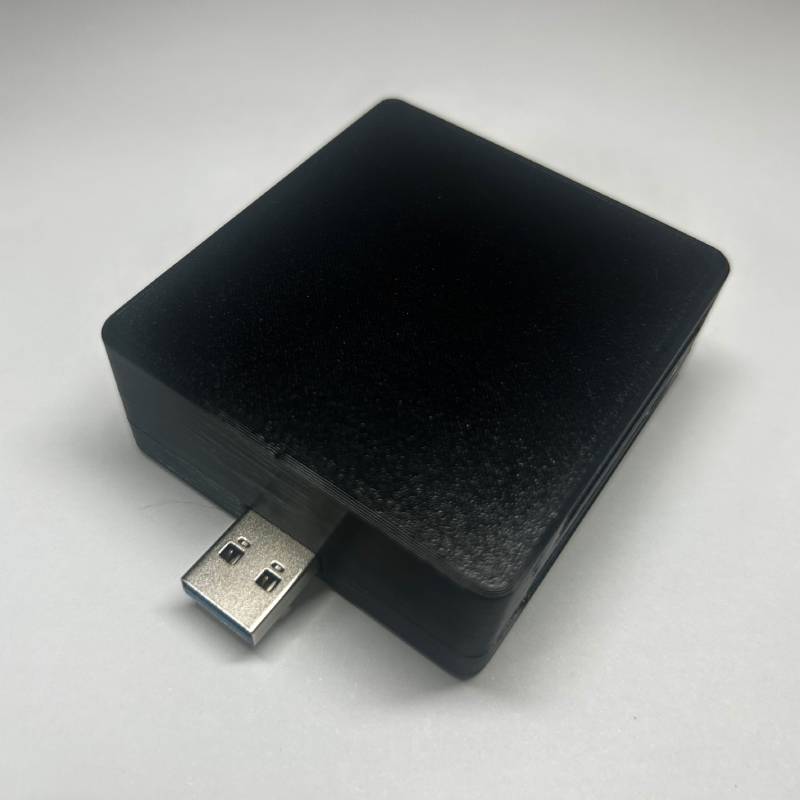

• Stand-Alone Device: This dedicated adapter connects directly to the MiSTer I/O board's User Port (USB 3.0) and does not require an additional level shifter.
• High-Quality Build: Comes fully assembled, often featuring a high-quality PCB finish and/or solid casing.

Compatibility Requirements:

• MiSTer FPGA System.
• Requires a MiSTer Analog I/O Board v6.1 or newer, OR a Digital I/O Board v1.2 or newer, or other I/O boards with a compatible User I/O port.
• Latest MiSTer PSX Core update is recommended.

Setup Instructions (Summary):

1. Update to the latest MiSTer FPGA PSX core.
2. Connect the SNAC Adapter to the User Port (USB 3.0) on your I/O board (using a short USB 3.0 extension cable is often recommended).
3. In the PSX core menu, set controllers (Pad1, Pad2) to SNAC-port1 and SNAC-port2.

The adapter's PCB features an ENIG finish, ensuring high quality. It comes fully soldered and ready to use right out of the box.

This is a standalone SNAC adapter and DOES NOT require any level converters for proper operation.

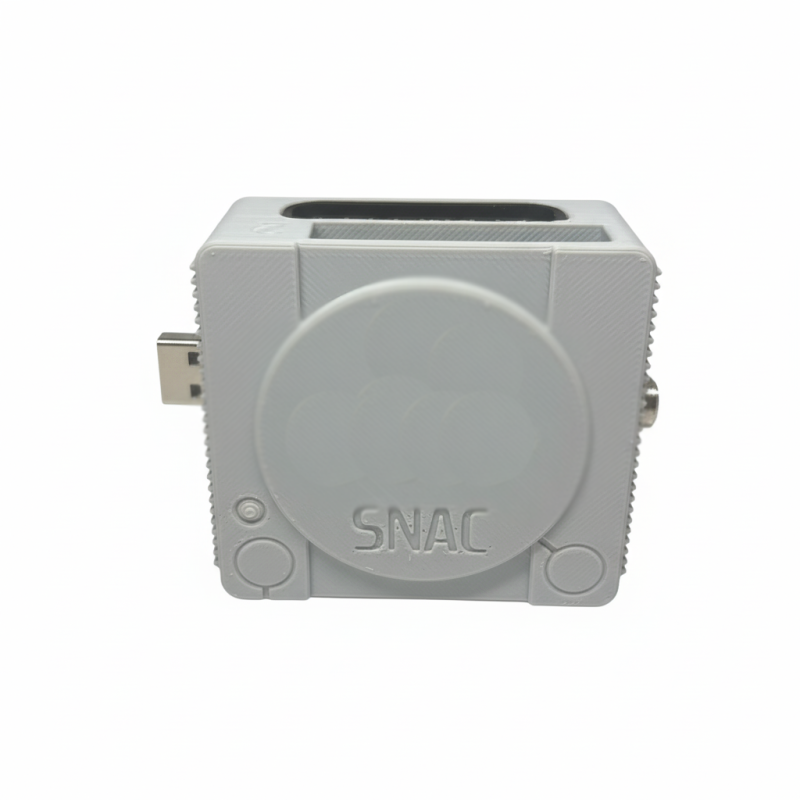

The case design is based on the PSX SNAC adapter shell for MiSTer FPGA available at Thingiverse. Copyright for this design belongs to DiniertoDesigns, and it is licensed under the Creative Commons - Attribution.
