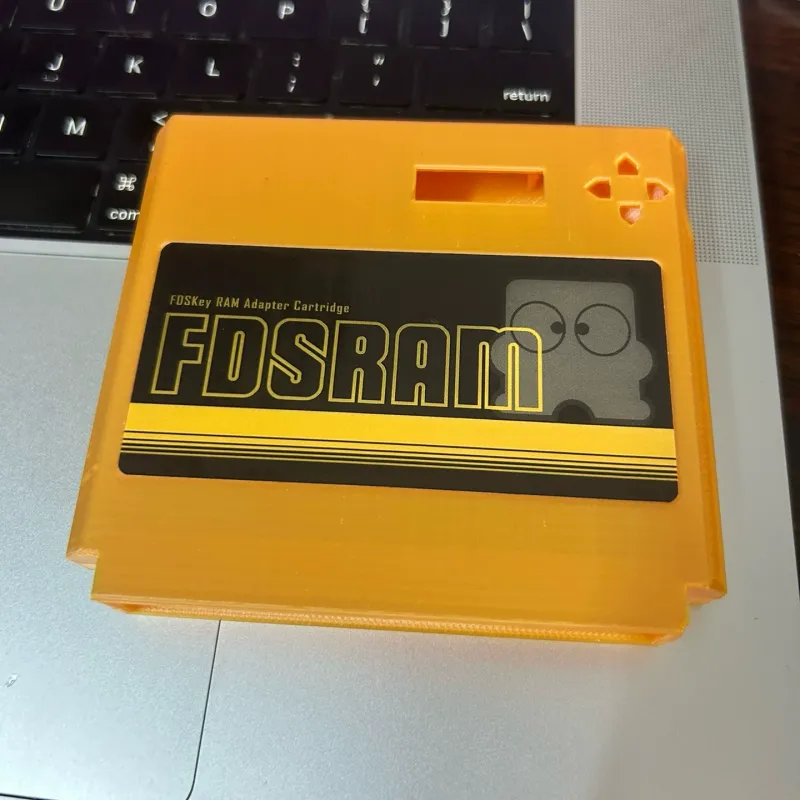

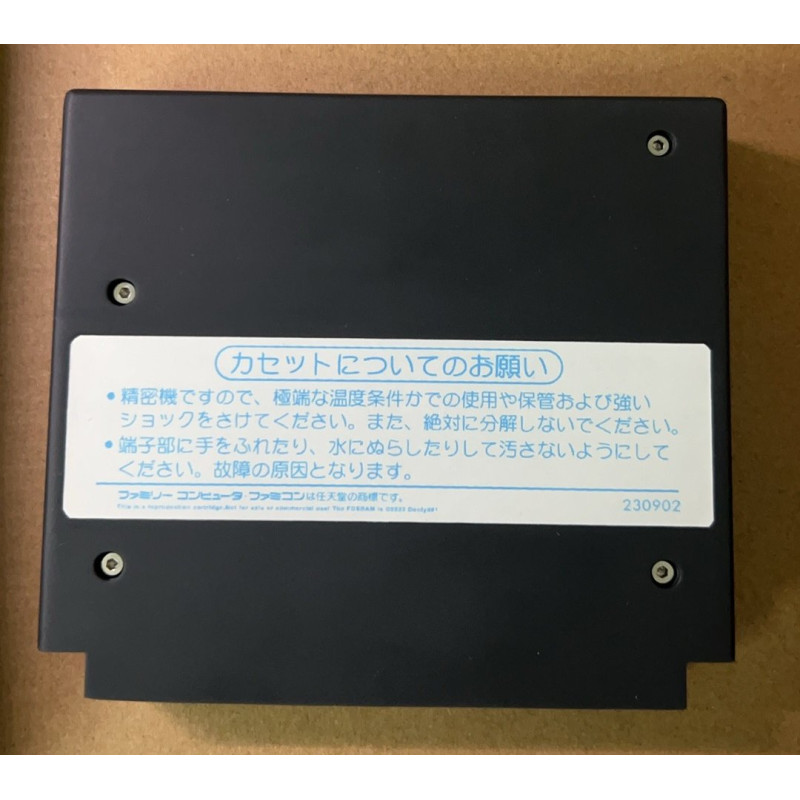

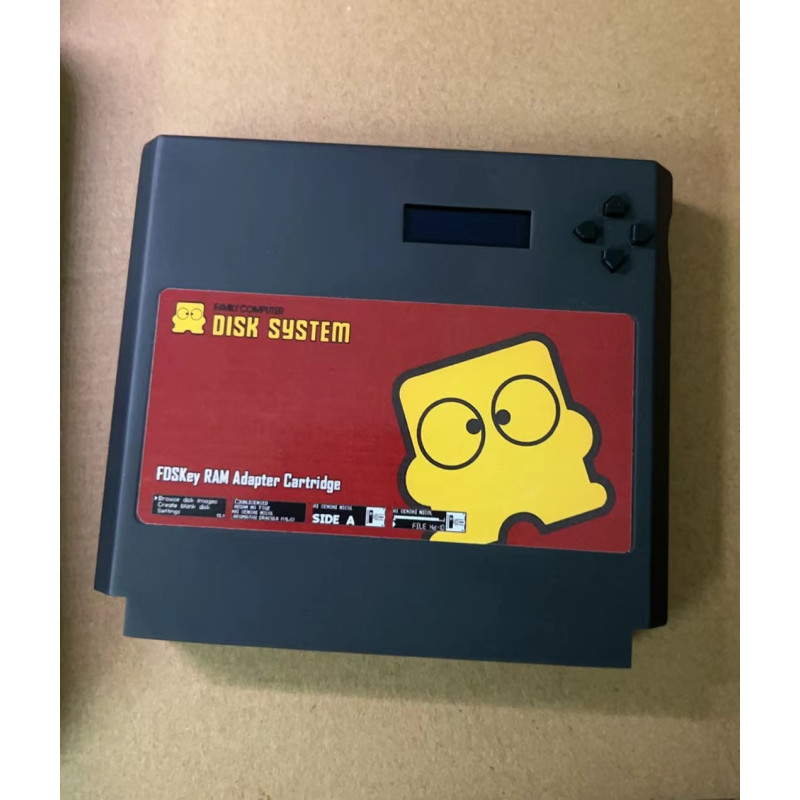

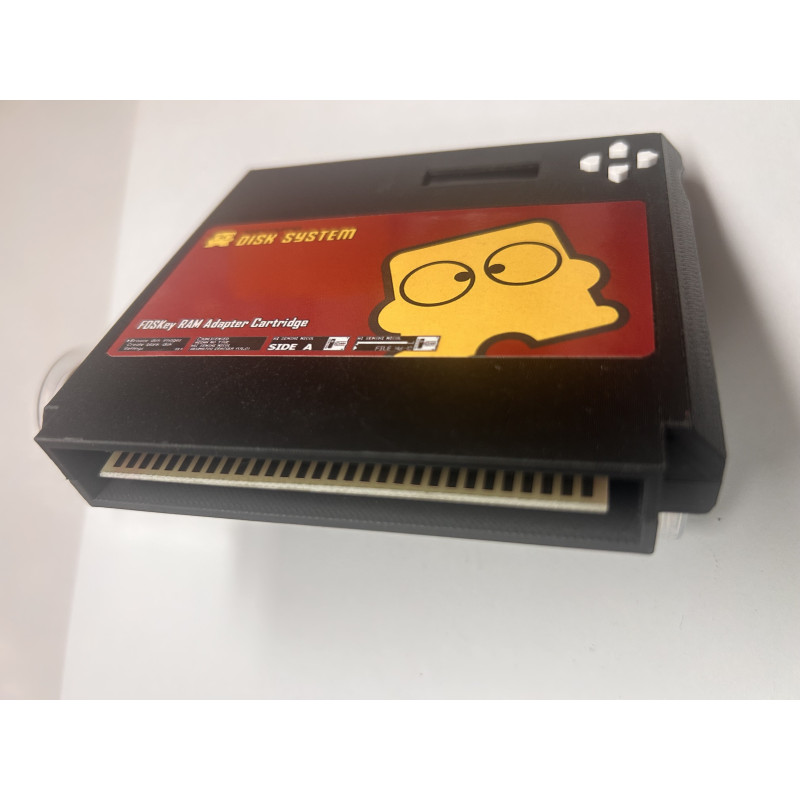

FDSKey RAM Adapter Cartridge

FDSKey RAM Adapter Cartridge is a drive emulator solution designed for Nintendo Famicom and AV Sharp Twin Famicom consoles.

This cartridge features MicroSD card support for easy game loading and storage.

Options Available:

1. Full Set
   The complete product package, including a TF memory card. Ready to use straight out of the box—no assembly required.

2. CART_FMR04_PCB + FDSKEY_MOD_PCB + CASE
   This option includes two gold-plated PCBs (including BOMs), which require you to disassemble the RAM Adapter's components and ICs for soldering and assembly. It also includes a 3D printed case and cover stickers as a bonus.

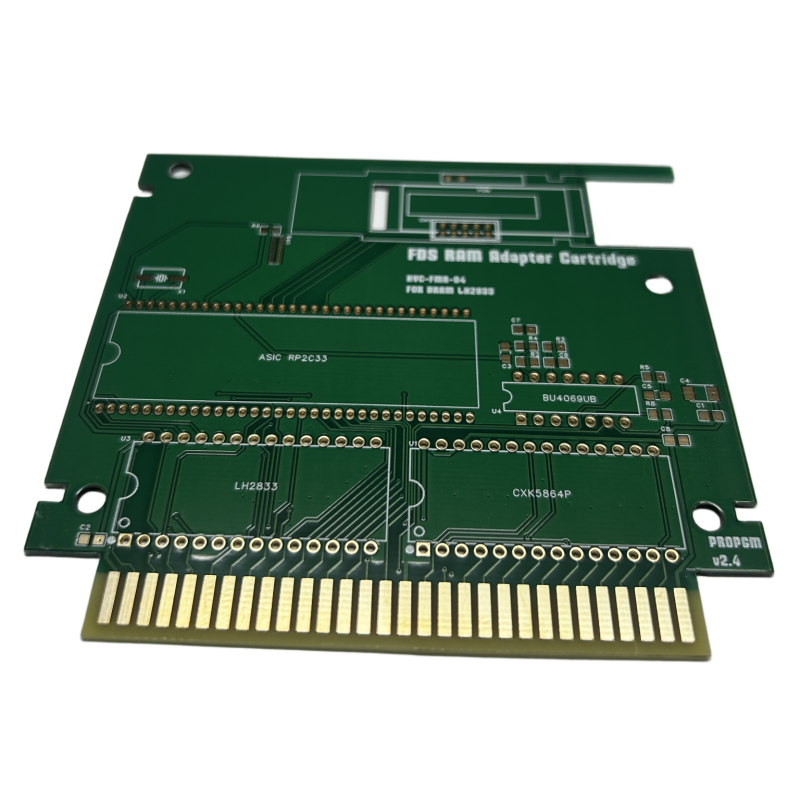

3. CART_FMR04_PCB
   This option includes a single gold-plated PCB for the FDSKey RAM Adapter.

4. FDSKEY_MOD_PCB
   This option includes a single gold-plated PCB for the FDSKey RAM Adapter. Open-source documentation is available (see below) for those who wish to download and make their own version.

Features:

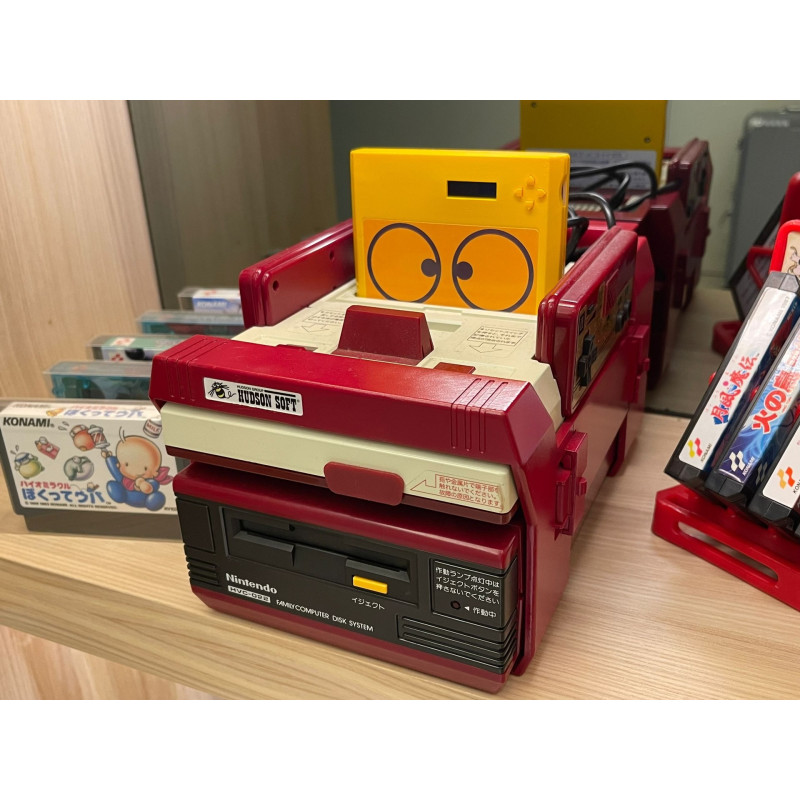

• Compatible with Nintendo Famicom and AV Sharp Twin Famicom
• MicroSD card support for ROM storage
• High-quality build with reliable components, the PCB features an ENIG finish
• Easy to use plug-and-play design

Technical Specifications:

• Compatibility: Nintendo Famicom, AV Sharp Twin Famicom
• Storage: MicroSD card slot (supports up to 32GB)
• Build Quality: High-grade PCB with reliable components
• Design: Compact cartridge form factor

The FDSKey Mod PCB is open source here and licensed under the AGPL-3.0 license.

Tags: Famicom, Cartridge
